RSP-TC
Anti-glare recessed spotlights with deep reflector design, UGR<17.5 options for comfortable office and retail lighting.
18 models in this series
FC-RSP-TC-1
| Power | 7W |
| Cut-out Size | Φ55mm |
| Outer Diameter | Φ75mm |
| Height | H82mm |
| CCT | 2700K/3000K/3500K/4000K/5000K/5700K/6500K |
| CRI | 90 |
| UGR | <17.5 |
| IP Rating | IP44 |
| Beam Angle | 15°/24°/30°/36°/38°/45°/55° |
| Dimming / Control | DT6+DT8 / SCR dimming |
Price on request. Contact us for a quotation.

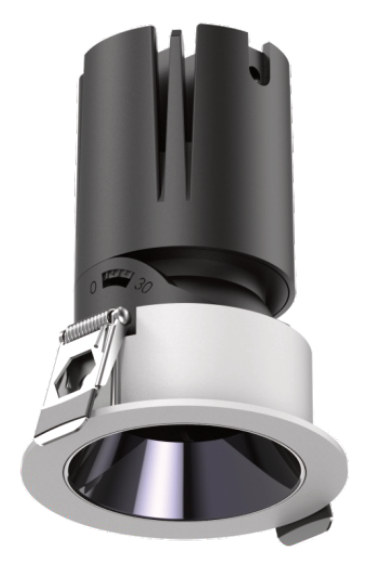

FC-RSP-TC-2
| Power | 10W |
| Cut-out Size | Φ55mm |
| Outer Diameter | Φ75mm |
| Height | H92mm |
| CCT | 2700K/3000K/3500K/4000K/5000K/5700K/6500K |
| CRI | 90 |
| UGR | <17.5 |
| IP Rating | IP44 |
| Beam Angle | 15°/24°/30°/36°/38°/45°/55° |
| Dimming / Control | DT6+DT8 / SCR dimming |
Price on request. Contact us for a quotation.

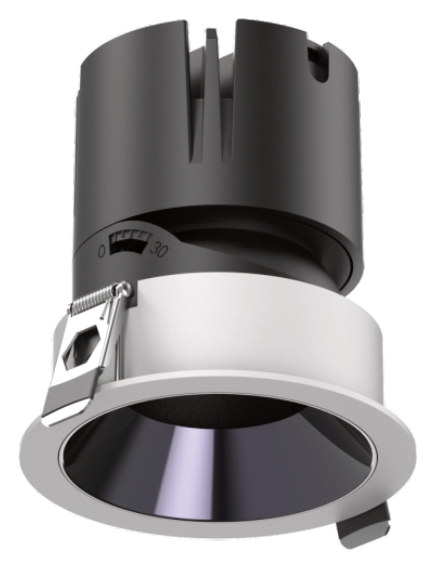

FC-RSP-TC-3
| Power | 12W |
| Cut-out Size | Φ75mm |
| Outer Diameter | Φ100mm |
| Height | H92mm |
| CCT | 2700K/3000K/3500K/4000K/5000K/5700K/6500K |
| CRI | 90 |
| UGR | <17.5 |
| IP Rating | IP44 |
| Beam Angle | 15°/24°/30°/36°/45°/55° |
| Dimming / Control | DT6+DT8 / SCR dimming |
Price on request. Contact us for a quotation.

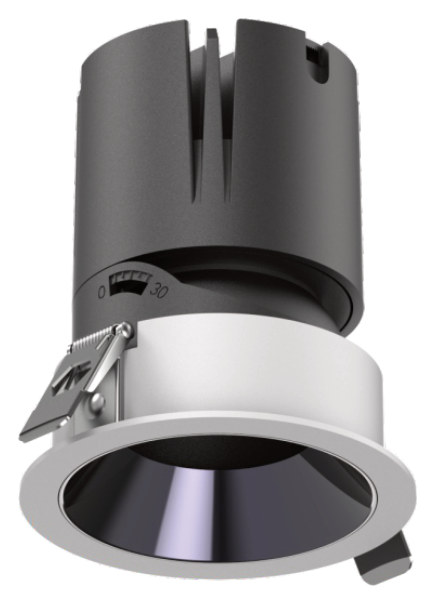

FC-RSP-TC-4
| Power | 15W |
| Cut-out Size | Φ75mm |
| Outer Diameter | Φ100mm |
| Height | H102mm |
| CCT | 2700K/3000K/3500K/4000K/5000K/5700K/6500K |
| CRI | 90 |
| UGR | <17.5 |
| IP Rating | IP44 |
| Beam Angle | 15°/24°/30°/36°/45°/55° |
| Dimming / Control | DT6+DT8 / SCR dimming |
Price on request. Contact us for a quotation.

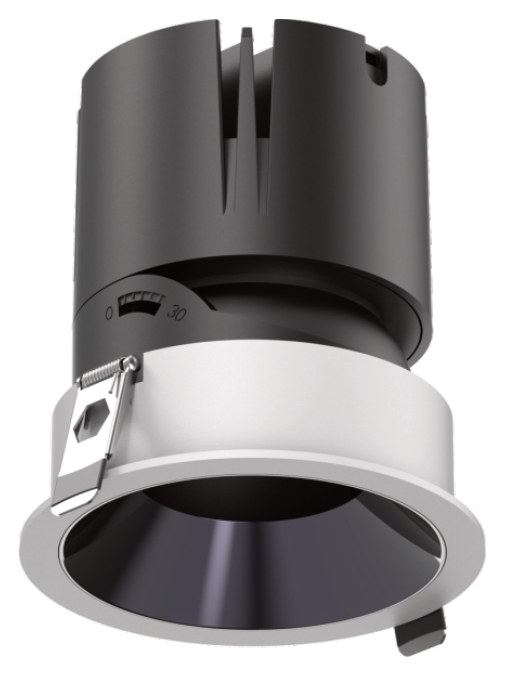

FC-RSP-TC-5
| Power | 20W |
| Cut-out Size | Φ95mm |
| Outer Diameter | Φ120mm |
| Height | H115mm |
| CCT | 2700K/3000K/3500K/4000K/5000K/5700K/6500K |
| CRI | 90 |
| UGR | <17.5 |
| IP Rating | IP44 |
| Beam Angle | 15°/24°/30°/36°/45°/55° |
| Dimming / Control | DT6+DT8 / SCR dimming |
Price on request. Contact us for a quotation.

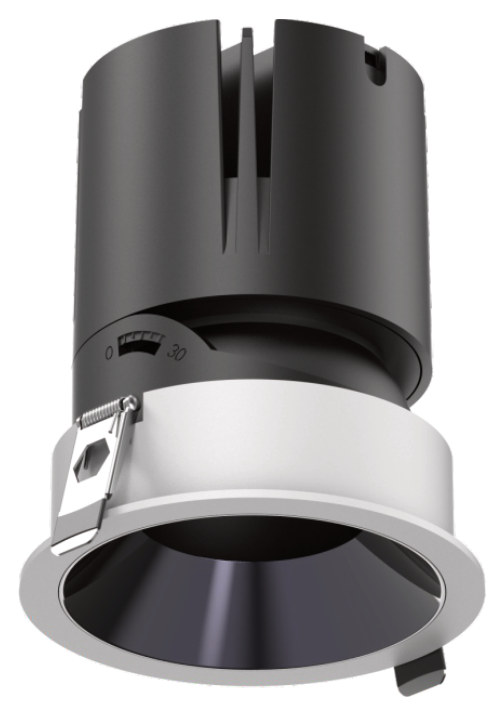

FC-RSP-TC-6
| Power | 25W |
| Cut-out Size | Φ95mm |
| Outer Diameter | Φ120mm |
| Height | H125mm |
| CCT | 2700K/3000K/3500K/4000K/5000K/5700K/6500K |
| CRI | 90 |
| UGR | <17.5 |
| IP Rating | IP44 |
| Beam Angle | 15°/24°/30°/36°/38°/45°/55° |
| Dimming / Control | DT6+DT8 / SCR dimming |
Price on request. Contact us for a quotation.

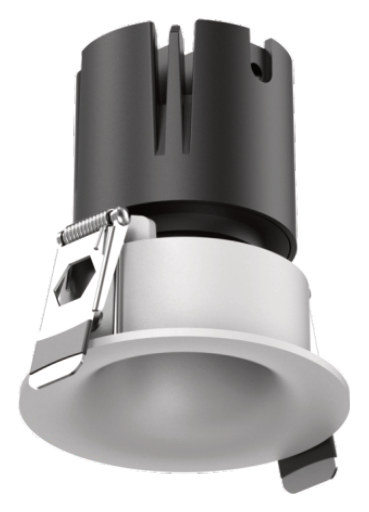

FC-RSP-TC-7
| Power | 7W |
| Cut-out Size | Φ55mm |
| Outer Diameter | Φ65mm |
| Height | H75mm |
| CCT | 2700K/3000K/3500K/4000K/5000K/5700K/6500K |
| CRI | 90 |
| UGR | <17.5 |
| IP Rating | IP44 |
| Beam Angle | 15°/24°/30°/36°/38°/45°/55° |
| Dimming / Control | DT6+DT8 / SCR dimming |
Price on request. Contact us for a quotation.

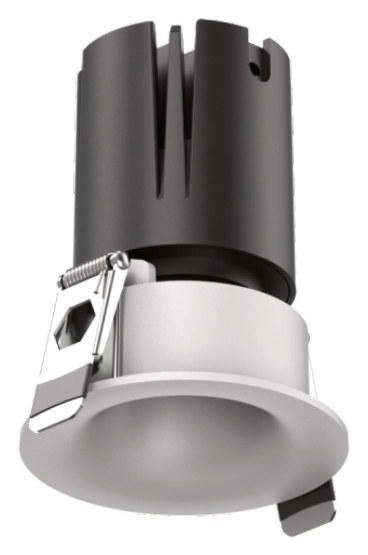

FC-RSP-TC-8
| Power | 10W |
| Cut-out Size | Φ55mm |
| Outer Diameter | Φ65mm |
| Height | H85mm |
| CCT | 2700K/3000K/3500K/4000K/5000K/5700K/6500K |
| CRI | 90 |
| UGR | <17.5 |
| IP Rating | IP44 |
| Beam Angle | 15°/24°/30°/36°/38°/45°/55° |
| Dimming / Control | DT6+DT8 / SCR dimming |
Price on request. Contact us for a quotation.

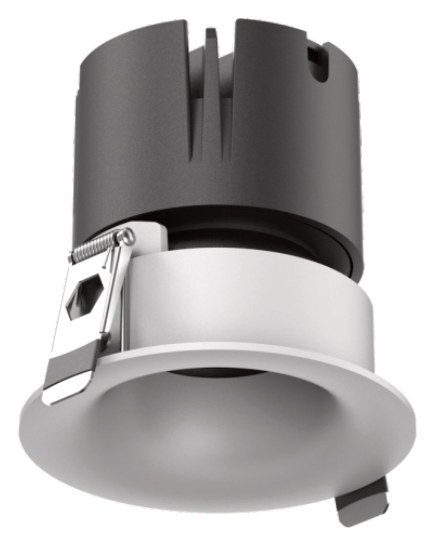

FC-RSP-TC-9
| Power | 12W |
| Cut-out Size | Φ75mm |
| Outer Diameter | Φ85mm |
| Height | H85mm |
| CCT | 2700K/3000K/3500K/4000K/5000K/5700K/6500K |
| CRI | 90 |
| UGR | <17.5 |
| IP Rating | IP44 |
| Beam Angle | 15°/24°/30°/36°/45°/55° |
| Dimming / Control | DT6+DT8 / SCR dimming |
Price on request. Contact us for a quotation.
FC-RSP-TC-10
| Power | 15W |
| Cut-out Size | Φ75mm |
| Outer Diameter | Φ85mm |
| Height | H98mm |
| CCT | 2700K/3000K/3500K/4000K/5000K/5700K/6500K |
| CRI | 90 |
| UGR | <17.5 |
| IP Rating | IP44 |
| Beam Angle | 15°/24°/30°/36°/45°/55° |
| Dimming / Control | DT6+DT8 / SCR dimming |
Price on request. Contact us for a quotation.

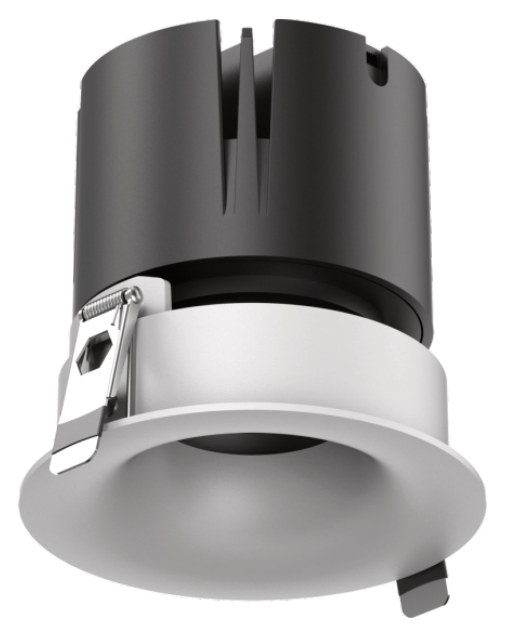

FC-RSP-TC-11
| Power | 20W |
| Cut-out Size | Φ95mm |
| Outer Diameter | Φ105mm |
| Height | H105mm |
| CCT | 2700K/3000K/3500K/4000K/5000K/5700K/6500K |
| CRI | 90 |
| UGR | <17.5 |
| IP Rating | IP44 |
| Beam Angle | 15°/24°/30°/36°/45°/55° |
| Dimming / Control | DT6+DT8 / SCR dimming |
Price on request. Contact us for a quotation.

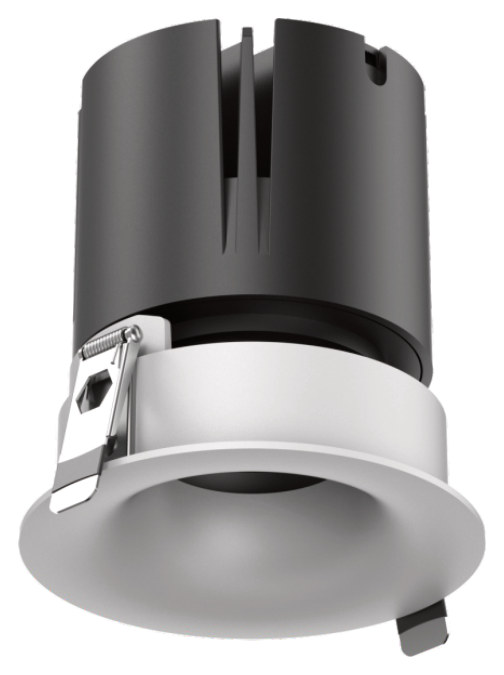

FC-RSP-TC-12
| Power | 25W |
| Cut-out Size | Φ95mm |
| Outer Diameter | Φ105mm |
| Height | H115mm |
| CCT | 2700K/3000K/3500K/4000K/5000K/5700K/6500K |
| CRI | 90 |
| UGR | <17.5 |
| IP Rating | IP44 |
| Beam Angle | 15°/24°/30°/36°/38°/45°/55° |
| Dimming / Control | DT6+DT8 / SCR dimming |
Price on request. Contact us for a quotation.

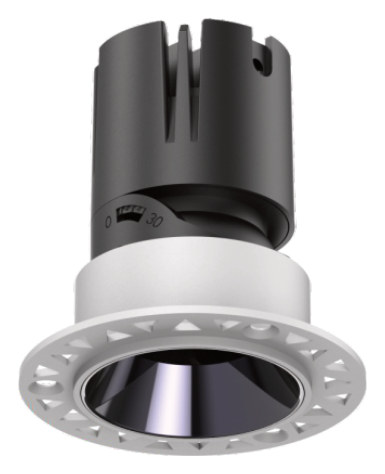

FC-RSP-TC-13
| Power | 7W |
| Cut-out Size | Φ55mm |
| Outer Diameter | Φ75mm |
| Height | H80mm |
| CCT | 2700K/3000K/3500K/4000K/5000K/5700K/6500K |
| CRI | 90 |
| UGR | <17.5 |
| IP Rating | IP44 |
| Beam Angle | 15°/24°/30°/36°/38°/45°/55° |
| Dimming / Control | DT6+DT8 / SCR dimming |
Price on request. Contact us for a quotation.

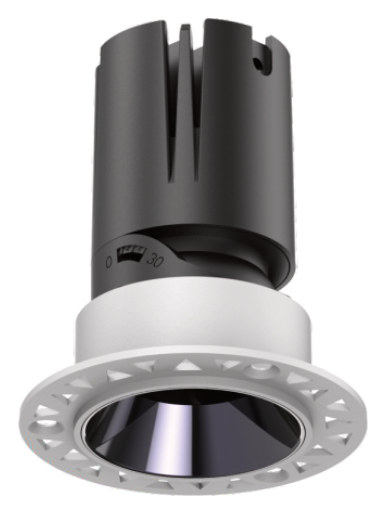

FC-RSP-TC-14
| Power | 10W |
| Cut-out Size | Φ55mm |
| Outer Diameter | Φ75mm |
| Height | H90mm |
| CCT | 2700K/3000K/3500K/4000K/5000K/5700K/6500K |
| CRI | 90 |
| UGR | <17.5 |
| IP Rating | IP44 |
| Beam Angle | 15°/24°/30°/36°/38°/45°/55° |
| Dimming / Control | DT6+DT8 / SCR dimming |
Price on request. Contact us for a quotation.

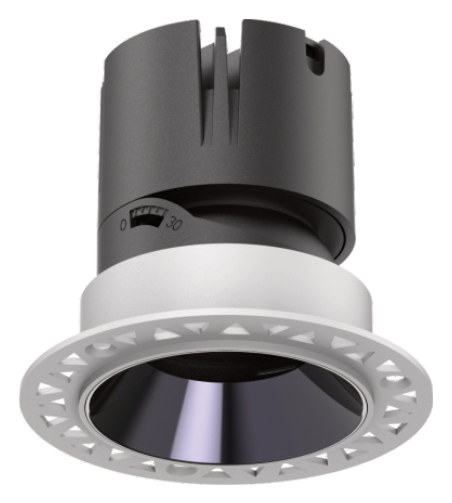

FC-RSP-TC-15
| Power | 12W |
| Cut-out Size | Φ75mm |
| Outer Diameter | Φ100mm |
| Height | H92mm |
| CCT | 2700K/3000K/3500K/4000K/5000K/5700K/6500K |
| CRI | 90 |
| UGR | <17.5 |
| IP Rating | IP44 |
| Beam Angle | 15°/24°/30°/36°/45°/55° |
| Dimming / Control | DT6+DT8 / SCR dimming |
Price on request. Contact us for a quotation.

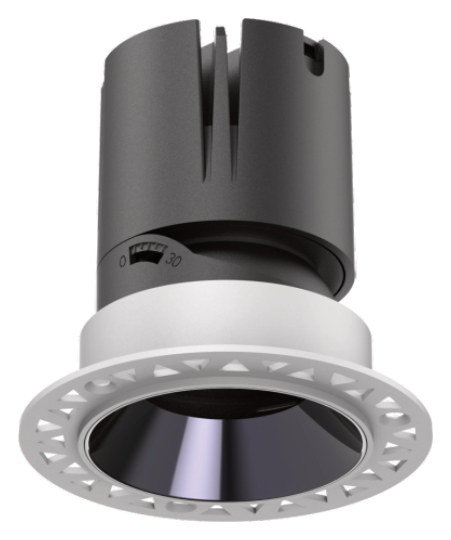

FC-RSP-TC-16
| Power | 15W |
| Cut-out Size | Φ75mm |
| Outer Diameter | Φ100mm |
| Height | H102mm |
| CCT | 2700K/3000K/3500K/4000K/5000K/5700K/6500K |
| CRI | 90 |
| UGR | <17.5 |
| IP Rating | IP44 |
| Beam Angle | 15°/24°/30°/36°/45°/55° |
| Dimming / Control | DT6+DT8 / SCR dimming |
Price on request. Contact us for a quotation.

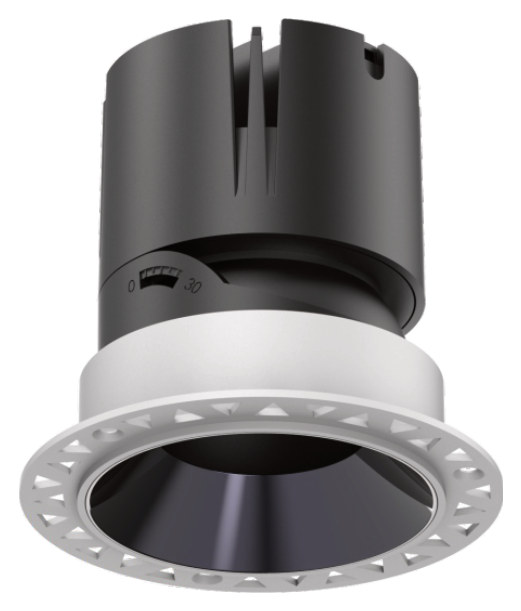

FC-RSP-TC-17
| Power | 20W |
| Cut-out Size | Φ95mm |
| Outer Diameter | Φ120mm |
| Height | H115mm |
| CCT | 2700K/3000K/3500K/4000K/5000K/5700K/6500K |
| CRI | 90 |
| UGR | <17.5 |
| IP Rating | IP44 |
| Beam Angle | 15°/24°/30°/36°/45°/55° |
| Dimming / Control | DT6+DT8 / SCR dimming |
Price on request. Contact us for a quotation.

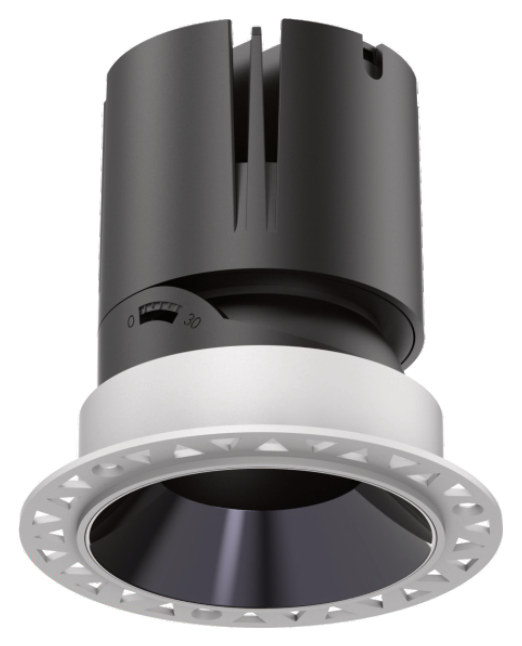

FC-RSP-TC-18
| Power | 25W |
| Cut-out Size | Φ95mm |
| Outer Diameter | Φ120mm |
| Height | H125mm |
| CCT | 2700K/3000K/3500K/4000K/5000K/5700K/6500K |
| CRI | 90 |
| UGR | <17.5 |
| IP Rating | IP44 |
| Beam Angle | 15°/24°/30°/36°/38°/45°/55° |
| Dimming / Control | DT6+DT8 / SCR dimming |
Price on request. Contact us for a quotation.
