RSD-KX
Recessed LED downlights for offices, hotels and commercial spaces, with high CRI and multiple beam angles.
4 models in this series
FC-RSD-KX-1
| Power | 7W |
| Cut-out Size | Φ55mm |
| Outer Diameter | Φ80mm |
| Height | H53mm |
| CCT | 2700K/3000K/3500K/4000K/5000K/5700K/6500K |
| CRI | 90 |
| UGR | <17.5 |
| IP Rating | IP44 |
| Beam Angle | 45°/55° |
| Dimming / Control | DT6+DT8 / SCR dimming |
Price on request. Contact us for a quotation.

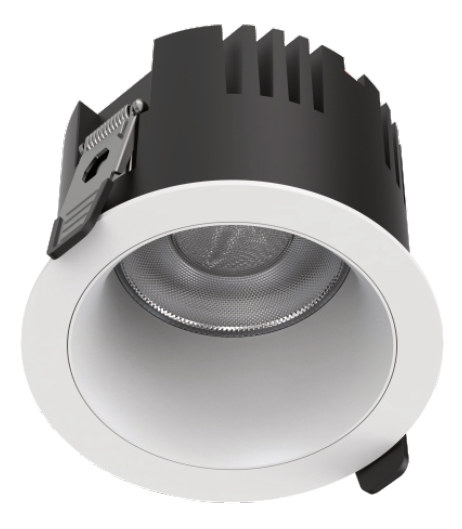

FC-RSD-KX-2
| Power | 12W |
| Cut-out Size | Φ75mm |
| Outer Diameter | Φ100mm |
| Height | H60mm |
| CCT | 2700K/3000K/3500K/4000K/5000K/5700K/6500K |
| CRI | 90 |
| UGR | <17.5 |
| IP Rating | IP44 |
| Beam Angle | 45°/55° |
| Dimming / Control | DT6+DT8 / SCR dimming |
Price on request. Contact us for a quotation.

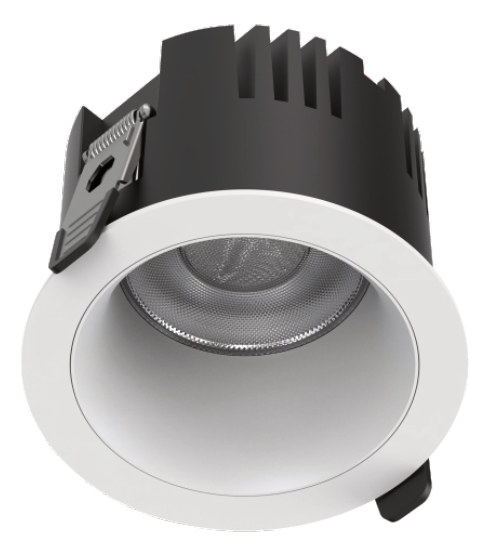

FC-RSD-KX-3
| Power | 15W |
| Cut-out Size | Φ95mm |
| Outer Diameter | Φ120mm |
| Height | H66mm |
| CCT | 2700K/3000K/3500K/4000K/5000K/5700K/6500K |
| CRI | 90 |
| UGR | <17.5 |
| IP Rating | IP44 |
| Beam Angle | 45°/55° |
| Dimming / Control | DT6+DT8 / SCR dimming |
Price on request. Contact us for a quotation.

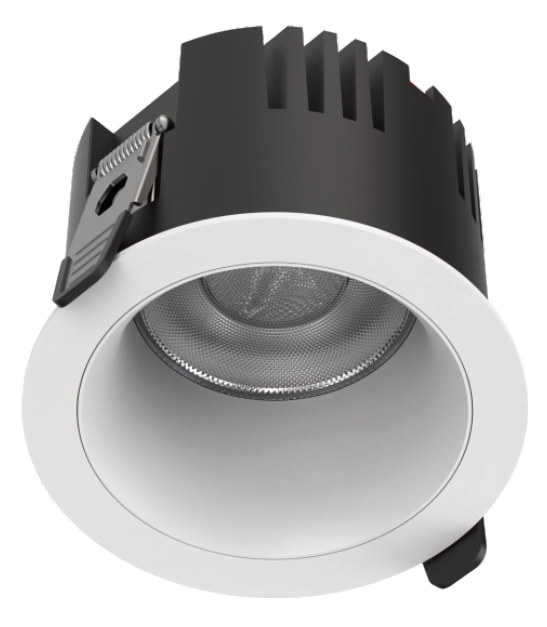

FC-RSD-KX-4
| Power | 20W |
| Cut-out Size | Φ115mm |
| Outer Diameter | Φ150mm |
| Height | H78mm |
| CCT | 2700K/3000K/3500K/4000K/5000K/5700K/6500K |
| CRI | 90 |
| UGR | <17.5 |
| IP Rating | IP44 |
| Beam Angle | 45°/55° |
| Dimming / Control | DT6+DT8 / SCR dimming |
Price on request. Contact us for a quotation.
